FEATURES
- 3 DIFFERENTIALS
- CNC machined 46T spur gear
- Alum. shock absorbers
- Steel Shock Pivot Ball Mounts
- CNC machined shock towers
- CNC MAchined stainless chassis guards
- Universal Driveshafts
- Lower Arm Mounts
- Adjustable motor mount
- Alum. Body Posts
- Mounted TireS
- LED LIGHTS

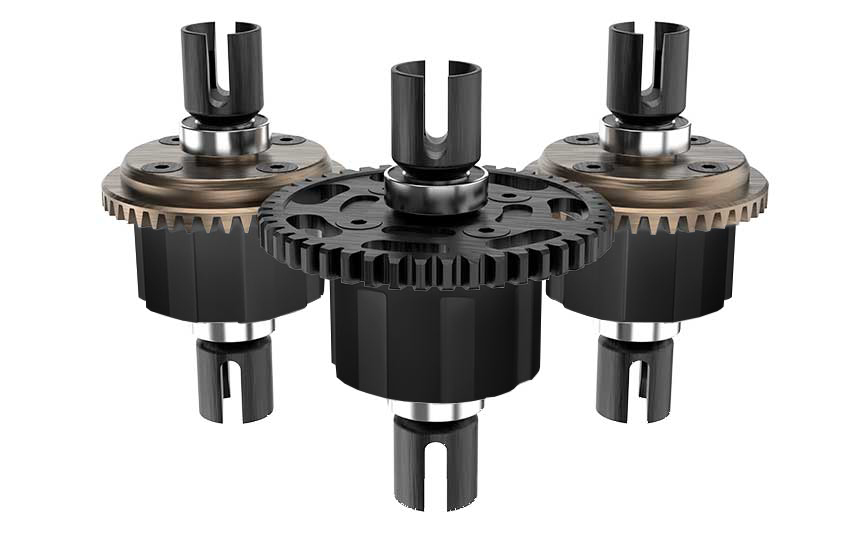

Three Differentials
Alum. Adjustable Shock Absorbers
#350 Shock Oil
SteelShock Pivot Ball Mounts
Front/Rear
CNC Machined Stainless Chassis Guards
Long Travel Suspensions Adjustable Turn Buckles
Receiver Box
Easy Access Multi-port Plug
Dirt/Dust Filter
Quick released Battery Straps
Alum.-Body-Posts
Adjustable Motor Mount
Lower-Arm-Mounts
Front/Rear
CNC Machine Shock Towers
Universal Driveshafts
Mounted-Tires
Front Bumper & LED Lights
·F/R Differentials
#7000 Diff Oil
Center Differentials
#500000 Diff Oil
Specifications
1/10 EP RACING MONSTER TRUCK (RTR)
| Length: | 428mm |
| Width: | 343mm |
| Height: | 186mm |
| Wheelbase: | 270mm |
| Weight: | 2.7kg |
| Wheel Dia. | (O.DxI.DxW): 5.1 x 3.25 x 2.75 |
| Drive System : | Shaft-Driven 4WD |
108002
Mounted Tire 4.7″x2.8″ Size -14mm hubs (4)-BK
510170
E5 Anti roll bar set
510132BK 510132TI
E5 CNC Machined Alum. Lower Arm (2)
510131BK 510131TI
E5 CNC Machined Alum. Upper Arm (2)
510127BK 510127TI
E5 CNC Machined Shock Tower
510131BK 510131TI
510175
E5 Center Differential Set
Front:510171 Rear:510172
E5 CNC Machined Stainless Chassis Guard
510108S
E5 CNC Machined Spur Gear 46T
510164BK 510164TI
E5 CNC Machined Alum. Central Linkage Plate
510102S
E5 Machined Bevel Gear – 43T/11T
510177
E5 Optional Battery Mount
510103S
E5 ST Steel F/R Differential Outdrive (2)
510194
E5 Alum. Mount Servo Saver – Upper
K6602 9T-24T
M1.0 Pinion Gear for 5mm Shaft 9T-24T
510133BK 510133TI
E5 CNC Machined Steering Block (2)
510193
E5 Protection Net
510210A
E5 Alum. Shock Absorber Set (2)
510120H 510120S
E5 Shock Spring (2) Hard / Soft
510116W
E5 Shock Piston POM
510142TI 510142R 510142O
E5 Alum. Body Post
510173BK 510173TI
E5 Alum. Pivot Ball Mount (4)
510176BK 510176TI
E5 Clamp Type Wheel Hexes 17mm (4)
510135BK 510135TI
E5 Clamp Type Wheel Hexes 14mm (4)
510174BK 510174TI
E5 Clamp Type Wheel Hexes 12mm (4)
