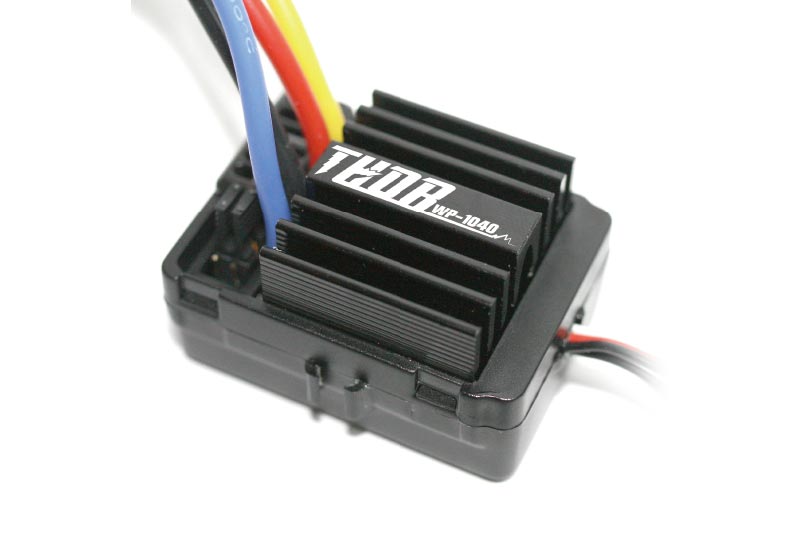

THOR 2S 40A Brushed ESC (WP-1040)

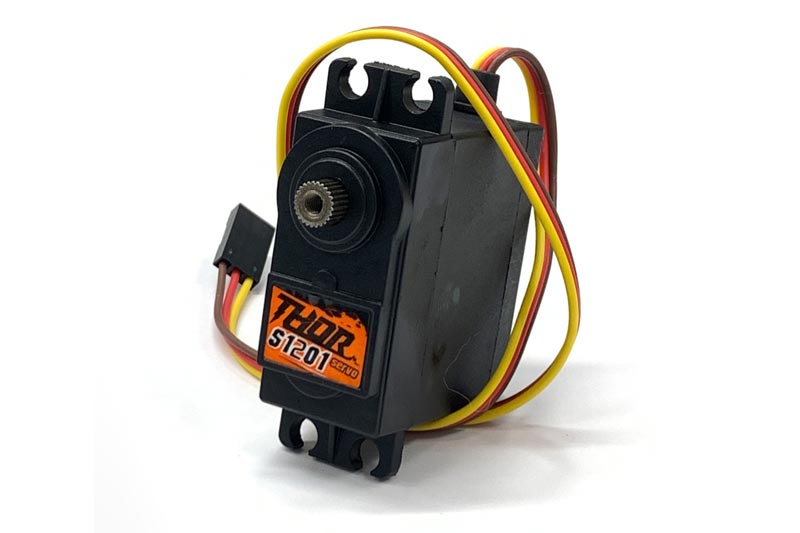

S1201 Servo 12KG (Digital)
THOR 540 7.4V Brushed Motor
Front One-way/Rear Spool Driven
Front wheels drive only during acceleration and freewheel under braking, making drifts more realistic.
The rear wheels are locked by a solid axle, ensuring equal rotation for better stability while drifting.
Features
- -64% Counter Steering Ratio
- -Front One-way/Rear Spool Driven
- -Silver ECO Graphite Chassis, Shock Towers, Upper Deck, and Front Upper
- Bumper Mount.
- -Full Ball Bearings
- -Dashing and modern body of vehicle
- -Middle-Front Motor Position
- -98% accomplished for Ready To Run

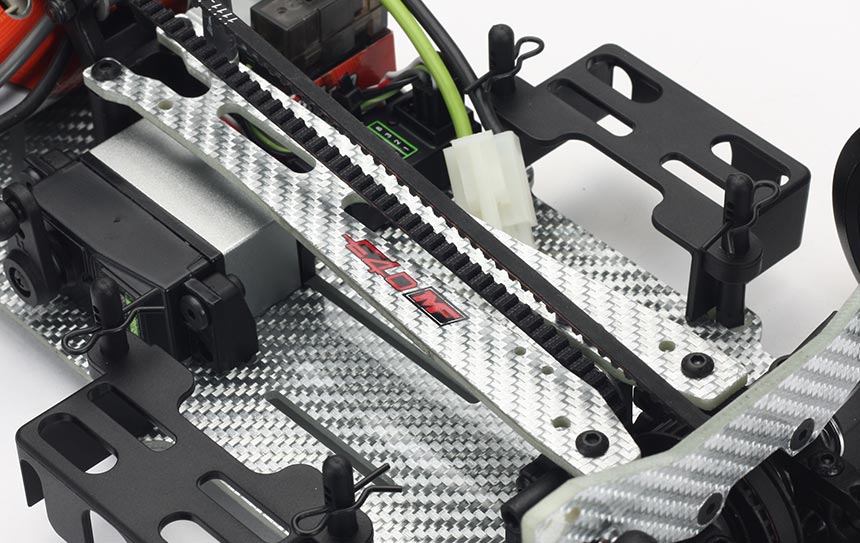

Silver ECO Graphite Parts
Lightweight strength, enhanced rigidity, reduced deformation, and improved suspension precision.

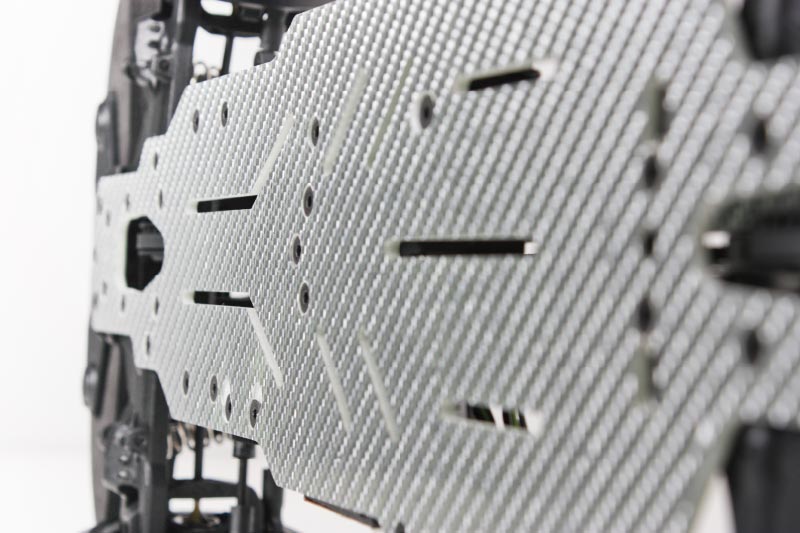

Chassis

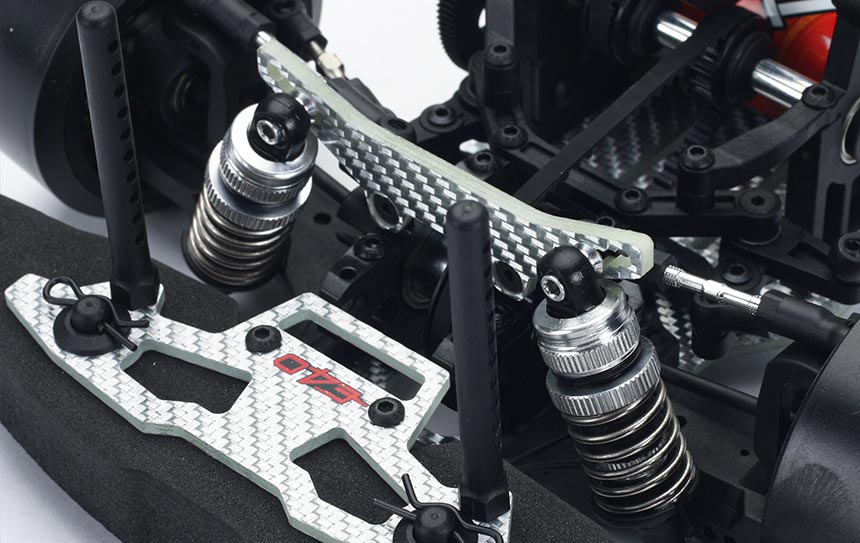

Shock Towers
Upper Deck
64% Counter Steering Ratio
Simulates the counter-steering characteristics of real rear-wheel-drive drifting.

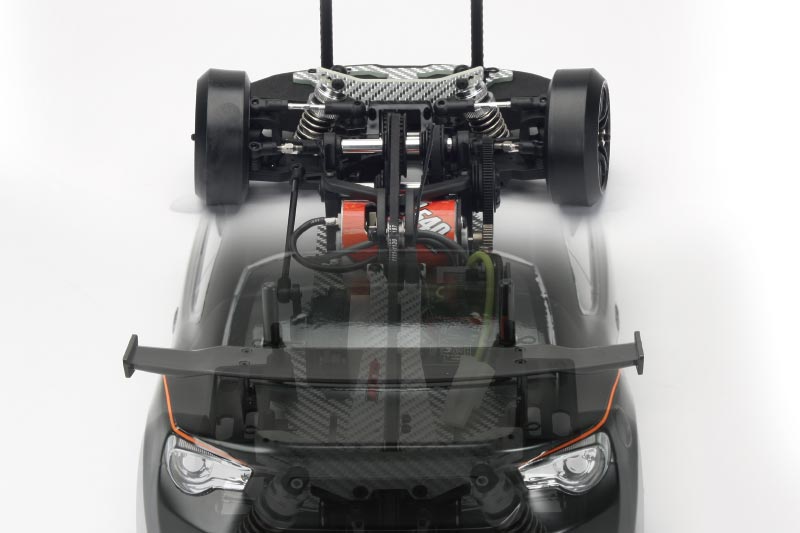

Motor Position
Front-mid engine design with the center of gravity positioned behind the front axle, delivering more stable and agile drifting.

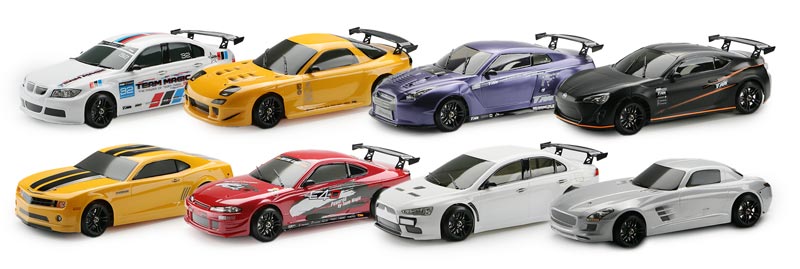

Multiple body shell options
Multiple shell options for a wide range of appearances.
Specifications
503017 1/10 E4D MF（Brushed Ver.）
Width 186–193mm (adjustable)
Wheelbase 256–260mm
Weight 1480g
Gear Ratio Front 2.06 / Rear 0.8
Caster Angle 6°
Transmitter AA batteries*4
Car 7.2V NiMH or 7.4V LiPo battery
